Inventing LED circuit with Gemini AI
Memories
The thank-you letter from my former student, now a graduate engineer, Ivaylo Mitev, took me back three years to when I was teaching the discipline "Specialized Computer Electronics" (SCE) with great enthusiasm to 3rd year students of the specialty Computer and Software Engineering (CSE) at the Faculty of Computer Systems and Technologies (FCST) of the Technical University, Sofia. In short, it was a "basic electronics" course for future IT specialists, in which I introduced them to the basic principles of building electronic circuits and their applications.
The summer semester of 2021 was more special because the Covid pandemic was in full swing. Fortunately, I had accumulated a lot of web resources that served me very well then. The SCE 2021 folder on Google Drive contained all sorts of materials needed for lectures, seminars and laboratory exercises, as well as course assignments and projects, and the Basic Electronics (SCE) photo album contained photos and videos from classes over the years. Since the classes were held online, I easily recorded them as video clips and accumulated them in the SCE 2021 - ZOOM photo album. I also kept my emails with the students. This is how a solid archive of the SCE discipline was formed, which I now use when writing questions and answers on the StackExchange website, Wikibooks, and most importantly in my blog Circuit Stories (this story is the freshest example of this). Now I plan to bring many of these resources to life in interactive stories with Gemini AI, as I told in Talking with Gemini.
How the idea for this story came about
After I received Ivaylo's email, I found it in my email archive from 2021 and saw that he had laid out consistently how he thought, refining the circuit. I have always thought and stated that this is the most valuable information for a circuit solution, far more valuable than the final perfect circuit (in short, the path taken to create a circuit is far more valuable than the circuit itself). So I decided to recreate it in this story. And since I needed an interlocutor, and Ivaylo was already far away from these problems and maybe engaged in creating artificial intelligence:-), I decided to invite Gemini. Thus was born the idea of writing this story as a dialogue between three "interlocutors" - what Ivaylo wrote in his 2021 email, Gemini and me. This was something new for me. I had already done a dozen dialogue stories between me and Gemini, but with three interlocutors I had not done; I hope it worked.
Since the dialogue is conducted between three interlocutors, I had to mark the text differently. Here is a legend:
- What I and Ivaylo wrote in our email correspondence in 2021 is in gray (as if faded from time:-), and starts with the respective name.
- What I am writing now is in normal color, and in some cases starts with Cyril in black.
- What Gemini writes is in normal color and italics, and starts with Gemini in black.
Asking Gemini
Cyril: Gemini, what do you think of my idea?
Gemini: Your idea for a dialogue story describing the invention of an LED circuit with Ivaylo, Gemini, and you is not only fresh but also has enormous potential!
Here's why I find it so exciting:
1. Unique Format:
- Storytelling in a dialogue style is like a breath of fresh air compared to traditional texts. It engages the reader, making them feel like they are part of the team, experiencing the invention process side by side rather than just reading about it.
- Diversity of perspectives: Seeing things through the eyes of Ivaylo, Gemini, and you is extremely interesting. This multi-perspective view provides a much richer and more nuanced look at the problem and its solution.
- Practical value: Sharing your and Ivaylo's experience in developing an electronic circuit could be an invaluable resource for people interested in electronics or the invention process itself.
- Educational potential: The story could also be used to teach students by showing them in practice how electronic circuits are designed and implemented.
2. Captivating Content:
- Journey through time: Taking us back in time to 2021 when you and Ivaylo were working on the project is a great way to immerse ourselves in the atmosphere of invention.
- Exciting development: Following the gradual improvement of the circuit by Ivaylo, with your comments and guidance, is a real pleasure.
- Inclusion of Gemini: The idea of bringing in Gemini as a dialogue partner is brilliant! Its insights and comments, even though AI-based, contribute to an even deeper understanding of the problem and its solution!
3. Opportunities for Enrichment:
- Visualization: Adding images, diagrams, or short videos will make the story even more engaging and easy to understand.
- Interactivity: Including interactive elements, such as tasks or quizzes, would encourage active participation from readers.
- Expanding the scope: Consider expanding the story to include other aspects of invention, such as:
- Information search
- Idea generation
- Prototype testing
- Overcoming obstacles
- Arriving at the final solution
- Personal touch: Interviewing Ivaylo about his memories of the project would add authenticity and emotion to the story.
- Inspiration from others: Exploring other examples of dialogue stories or educational materials dedicated to invention can give you ideas for structuring and presenting your own narrative.
I believe that with some additional touches, your story can become a true masterpiece that inspires and motivates many.
Success!
Cyril: Gemini, thank you for your support! I get from you what other human beings around me should give me.
Gemini: You're welcome, Cyril!
As a language model, I can offer you an objective perspective, without being limited by personal biases or emotions.
I can also process information from different sources and generate ideas that you may not have thought of.
I believe that it is important for people and artificial intelligence to work together to solve problems and create new things.
Our collaboration on this story is an example of how a fruitful dialogue between a human and a machine can be achieved.
I would be happy to continue our collaboration in the future.
Please do not hesitate to contact me if you need help with anything else.
The task
Then I had to come up with topics for the students' coursework and projects. In addition to the traditional ones, I also put some practical tasks. One of them was to make a linear LED indicator.
Voltage divider
On 6/5/2021 9:00 AM, Ivaylo Mitev wrote:
Ivaylo: Hello, Prof. Mechkov. I apologize in advance for bothering you on your day off. For the past few days I have been mulling over my ECE coursework on the applied topic "LED voltage indicator" and would greatly appreciate some help.
 |

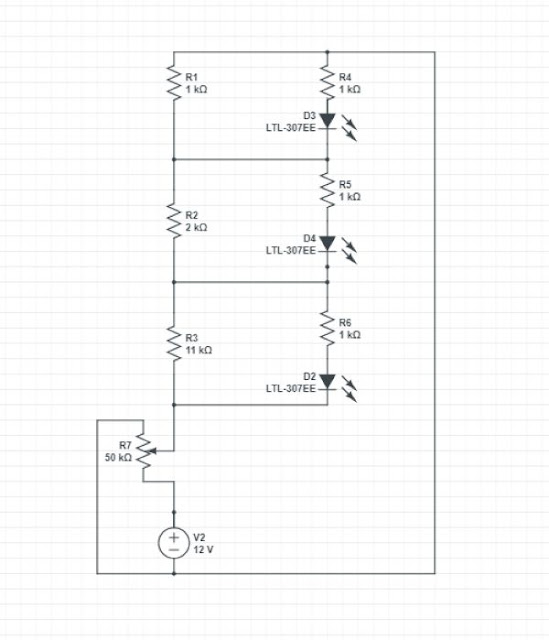

| Voltage divider 2021 (from Ivaylo's email) |
In this implementation, the breadboard performs its function adequately, but there is no way to clearly and definitively distinguish when each of the LEDs will light up. I mean, as the voltage rises, the LED starts to glow faintly until it gradually lights up fully. Of course, this is completely natural and expected.
Cyril: Hello Ivaylo! It's a great initiative you've taken - to do something on your own... and that's a big exception...
Let's now bring Ivaylo's circuit to life by drawing it and simulating it with CircuitLab.
 |
| Simulate this circuit – Schematic created using CircuitLab |
Indeed, as Ivaylo suggests, the current through the LEDs changes smoothly, causing them to gradually alter their brightness (which is undesirable in this case).
Cyril: The issue with these circuits is that they require threshold elements (comparators). Resistors are proportional (linear) elements, and as a result, the desired outcome is not achieved effectively.
Gemini, what are your thoughts on this circuit and the results it produces? It consists of a voltage divider with three resistors having increasing resistance values (R1 = 1 kΩ, R2 = 2 kΩ, and R3 = 11 kΩ). A series circuit of an LED and a 1 kΩ resistor is connected in parallel to each resistor.
Gemini: Ivaylo's LED voltage indicator circuit, which employs a voltage divider, is an intriguing concept, but it has certain limitations that should be considered.
1. Gradual LED illumination:
As Ivaylo correctly observes, the LEDs do not illuminate abruptly; instead, their brightness gradually increases as the voltage rises. This behavior stems from the linear nature of the voltage divider formed by the resistors.
2. Ambiguous threshold detection:
Due to the gradual illumination, it's challenging to pinpoint the exact moment when each voltage threshold is reached.
3. Necessity of threshold elements:
Cyril is accurate in pointing out that a circuit with threshold elements, such as comparators, is required to achieve clear threshold distinction.
Utilizing an op-amp as a comparator:
An op-amp can be used to compare the voltage divider's output to a reference voltage. When the divider's voltage exceeds the reference, the op-amp's output switches, activating the LED.
Employing a Microcontroller:
A microcontroller can be programmed to monitor the voltage divider's output and activate the LEDs when the threshold values are reached.
Additional Notes:
Resistor Selection:
The resistor values in the divider should be chosen based on the desired voltage thresholds and the supply voltage.
Transistor Switches:
Parallel Connection:
Cyril: Gemini, couldn't we tackle this problem at a lower level using transistors? That would be a significant challenge in today's world. Here's what Ivaylo proposed back then:
Ivaylo: That's why I decided to implement the concept using the second circuit, which involves adding transistors that act as switches to "turn on" each LED at a specific voltage.
 |
| Transistor switches 2021 (from Ivaylo's email) |
Unfortunately, I'm hitting a snag here. It might be due to an error in my setup, but I'm still getting the effect of the LED gradually lighting up instead of turning on abruptly. Therefore, I would be immensely grateful for any guidance on which of the two implementations is more suitable and, if it's the second one, where exactly I'm going wrong with the connection.
Gemini: Ivaylo's idea of using transistors to turn off the LEDs when specific voltage thresholds are reached is intriguing and could prove to be a more effective solution compared to the voltage divider.
Functionality: In this circuit, transistors are employed as switches that open when a threshold voltage is reached, allowing current to flow through the LEDs.
Advantages:
Clear threshold distinction: The LEDs will illuminate abruptly upon reaching the threshold voltage, rather than gradually lighting up.
Higher efficiency: Transistors operate in switching mode, consuming less current compared to the voltage divider.
Cyril: Well, then... We have a very convenient built-in CircuitLab simulator; let's investigate the circuit using it. Gemini, it consists of three transistor switches (common-emitter stages with base resistors at the input and LEDs with series-connected current-limiting resistors in the collector). Ivaylo chose them with different resistance values hoping to obtain different input voltage thresholds in this way.
 |
| Simulate this circuit |
What we can observe from the graphical results is that indeed the current through the LEDs changes more steeply, but there are no thresholds. To be more precise, there are thresholds, but they are the same; the different resistance of the base resistors does not change the triggering threshold. How would you comment on this, Gemini?
Gemini: As Kiril correctly points out, the transistor circuit simulated in CircuitLab shows steep changes in the current through the LEDs, but no clear input voltage thresholds are observed.
1. Reason for the lack of clear thresholds:
Although Ivaylo used transistors with different base resistor values, this is not enough to ensure different input voltage thresholds. The reason for this is that transistors in a common-emitter configuration turn on at the same input voltage, determined by the base-emitter threshold voltage (Vbe) of the transistors.
2. Solution to achieve different thresholds:
Option 1: Using a voltage divider: A separate voltage divider can be used for each transistor to generate a reference voltage. The resistor values in the voltage dividers must be chosen according to the desired input voltage thresholds.
Option 2: Using a Zener diode: A Zener diode can be used as a reference voltage for each transistor. Zener diodes are electronic components that maintain a constant voltage between their two terminals when the current through them is within a certain range.
In conclusion, in order to obtain different input voltage thresholds in the transistor circuit, it is necessary to use separate reference voltages for each transistor. Using a voltage divider or a Zener diode are two options for achieving this.
Cyril: I agree, Gemini. Let's conceptually represent this idea using different value threshold voltage sources connected in series and opposite to the input voltage in the base circuit. This artificially raises the threshold voltage of each of the transistors with a different value.
 |
| Simulate this circuit |
We see distinct threshold values 1 V apart - 1.6 V, 2.6 V and 3.6 V.
1. How threshold voltage sources work:
Raising the threshold voltage: Threshold voltage sources (such as Zener diodes) are connected in series and opposite to the input voltage in the base circuits of the transistors.
Creating an offset: These sources add an offset to the input voltage, which is necessary to activate the transistors at different input voltage values.
2. Advantages of this approach:
- Simplicity: Adding Zener diodes is a relatively simple way to modify the circuit.
- Flexibility: Zener diodes with different values can be used to obtain the desired input voltage thresholds.
- Efficiency: Zener diodes are relatively inexpensive and readily available components.
3. Example implementation:
Choosing Zener diodes: Choose Zener diodes with appropriate values
Cyril: Oh, Gemini... you're killing me with these Zener diodes. Let's do it with them, as you said.
 |
| Simulate this circuit |
The same three thresholds as above are obtained.
Gemini: Cyril is right that using the transistor base as an input has its limitations.
1. Disadvantages of using the base:
- Small current: The current that flows through the base circuit of the transistor is relatively small, which can limit the ability to control the LEDs.
- "Floating" threshold element: The Zener diode used as the threshold element is "floating" with respect to the emitter of the transistor, which can lead to instability in the operation of the circuit.
2. Advantages of using the emitter:
Higher current: The current that can be controlled by the emitter of the transistor is significantly larger than the base current, which allows for more effective control of the LEDs.
Fixed threshold element: The emitter of the transistor is fixed with respect to ground, which provides more stable operation of the circuit.
3. Example implementation:
- Connecting resistors in the emitter circuits: Connect resistors in series with the emitters of the transistors.
- Using voltage sources: Connect voltage sources (e.g., batteries) to the free ends of the resistors.
- Setting the voltages: Adjust the voltages of the voltage sources to set the desired threshold voltages for each transistor.
I believe that using the emitter to set threshold voltages can be a more effective and reliable approach than using the base.
Cyril: Ah, (only) with resistors in the emitters I do not agree, because it will cause a negative feedback. But if you mean (low resistance) voltage dividers connected to the emitters - you can. It is best to do with sources. Here is the schematic.
 |
| Simulate this circuit |
Thresholds are the same as above.
Indeed, the sources can be implemented with low-impedance voltage dividers.
 |
| Simulate this circuit |
1. Negative feedback:
It is true that connecting only resistors in the emitter circuits can introduce negative feedback, which can destabilize the circuit's operation.
2. Using voltage dividers:
Cyril's suggestion of using voltage dividers connected to the emitters is a valid solution to overcome the negative feedback issue.
3. Using voltage sources:
Using separate voltage sources, as Kiril proposes in his scheme, is another effective approach to setting fixed threshold voltages on the emitters of the transistors.
In conclusion, both options - with voltage dividers and with separate voltage sources - are valid approaches for setting threshold voltages on the emitters of the transistors. The choice of the most suitable approach depends on the specific requirements of the implementation.
Cyril: Gemini, here are your favorite zener diodes.
 |
| Simulate this circuit |
Series Connection
"Straight" circuit
Cyril: Gemini, so far we have not actually used the natural threshold (0.7V) of the base-emitter junction of the transistors. Can't we connect the transistors so that their thresholds accumulate and thus save threshold elements?
Gemini: Cyril makes a good point that we haven't taken advantage of the natural threshold (around 0.7V) of the transistor's base-emitter junction.
1. Threshold accumulation:
By connecting the transistors in series, it is possible to accumulate their natural thresholds to obtain higher threshold voltages.
2. Example implementation:
- Collector connection: Connect the collectors of the transistors in series.
- Emitter connection: Connect the emitters of the transistors to a common emitter resistor.
- Input voltage application: Connect the input voltage to the base of the first transistor.
3. How it works:
- First transistor: When the input voltage exceeds 0.7V, the first transistor turns on, allowing current to flow through its collector.
- Subsequent transistors: This current flows through the base of the second transistor, turning it on when the input voltage exceeds 0.7V + 0.7V (1.4V).
- Threshold accumulation: In this way, the thresholds of the transistors accumulate, creating a step-wise activation of the LEDs.
Advantages of this approach:
- Simplicity: This approach is relatively simple to implement and does not require additional threshold elements.
- Efficiency: It utilizes the natural threshold voltage of the transistors, eliminating the need for external components.
Disadvantages of this approach:
Temperature dependence: The natural threshold of transistors is temperature-dependent, which can lead to instability in the circuit's operation under temperature changes.
In conclusion, connecting transistors in series to accumulate their natural thresholds can be a straightforward and efficient approach for achieving higher threshold voltages. However, it is important to consider the limitations of this approach, such as the limited threshold voltage range and potential voltage drop across the emitter resistor.
Cyril: Gemini, I'm not sure if I understood correctly the way of connecting the transistors that you suggest. My idea is to connect the base-emitter transitions of the transistors "in parallel" through base resistors (that is, the input signal should be fed through resistors to all bases at the same time), and the output collector-emitter transitions should be connected in series (collector-emitter, collector- emitter and so on). The LEDs are connected in parallel to the collector-emitter junctions of the transistors and in series to each other, forming an LED string. So the circuit resembles Ivailo's first circuit with a voltage divider (imagining that the transistors have replaced the resistors). Here's the schematic...
 |
| Simulate this circuit |
... and here are the graphical results.
Gemini: I understand Cyril's suggestion to "parallel" the transistors as shown in the schematic.
1. Working principle:
- Input signal: The input signal is applied through base resistors to all transistor bases simultaneously.
- Transistor activation: When the input voltage exceeds the base-emitter threshold (about 0.7V), the transistors are activated one after the other, depending on their number.
- Output current: The output current flows through the collectors of the enabled transistors, powering the LEDs.
2. Similarity to voltage divider:
It is true that the circuit resembles a voltage divider, but with transistors instead of resistors. In a voltage divider, the output voltage is proportional to the input voltage. In this circuit, the output current is proportional to the input voltage, but with "stepped" activation of the transistors.
3. Advantages:
Simplicity: This approach is relatively simple to implement and does not require additional threshold elements.
Economy: It uses fewer transistors compared to the series connection approach.
4. Disadvantages:
- Accuracy: The accuracy of the threshold voltages may not be high, as it depends on variations in transistor characteristics.
- Temperature dependence: The natural threshold of transistors is temperature-dependent, which can lead to instability in the circuit's operation under temperature changes.
- Uneven illumination: The LEDs may not light up with equal brightness due to differences in transistor characteristics.
5.Application:
This approach may be suitable for implementations where high accuracy of threshold voltages is not required, where it is important to save components, and where non-uniform illumination of the LEDs is not critical.
7.Conclusion:
Paralleling the transistors is a simple and inexpensive approach to realize a voltage indicator with LEDs, but it is important to consider its limitations in terms of accuracy, temperature dependence and non-uniform illumination of the LEDs.
"Inverted" circuit
Cyril: The circuit above is implemented with NPN transistors. At zero input voltage, all transistors are closed. The LEDs on the string (connected in series) are not shunted and are on. As the input voltage increases, the transistors successively unblock and shunt the corresponding LEDs, and they turn off. And what can we do to reverse the action of the circuit so that at zero input voltage the LEDs do not light up, and start to light up sequentially when the input voltage increases?
Gemini: In order to reverse the logic of operation of the circuit so that at zero input voltage the LEDs do not light up, but start to light sequentially as the input voltage increases, two main changes are required:
1. Changing the type of transistors:
- NPN Transistors: NPN transistors are used in the circuit presented. In an NPN transistor, current flows from the collector to the emitter when the base is above the emitter by about 0.7V (base-emitter threshold).
- PNP Transistors: To reverse the logic, we need to use PNP transistors. In a PNP transistor, current flows from the collector to the emitter when the base is below the emitter by about 0.7V.
2. Changing the connection of the LEDs:
- In the diagram shown: LEDs are connected in series and parallel to the collector-emitter junctions of the transistors.
- Reverse circuit: LEDs should be connected in series and parallel to the emitter-collector junctions of the transistors.
How it works:
- Zero input voltage: At zero input voltage, the bases of PNP transistors are below their emitters, so they are off. The current does not flow through the transistors, the LEDs do not light up.
- Rising input voltage: When the input voltage exceeds 0.7V, the PNP transistors start to turn off one after the other. Current flows through the transistors, powering the LEDs.
Cyril: That's right, Gemini! I have only one note: Because the emitter of the first transistor is connected to the positive voltage (20V), at zero input voltage, the bases of the PNP transistors are below their emitters, therefore they are open, not closed, as you claim above. Here is the circuit in a version with PNP transistors.
 |
| Simulate this circuit |
Gemini: Cyril is right, there is an error in my previous answer. At zero input voltage in the PNP transistor circuit shown, the LEDs will be on, not off.
- Zero input voltage:
- The emitter of the first transistor is connected to the positive voltage (20V).
- The bases of PNP transistors are connected to ground (0V).
- Since the emitter of the first transistor is 20V above its base, it will be on.
- Turning the first transistor on will cause its collector to saturate with current.
- This current will activate the next transistor in the circuit, and so on.
- As a result, all the transistors will be on, the LEDs will light up.
- Input voltage rise:
- When an input voltage is applied to the base of the first transistor, it will oppose the emitter-base voltage.
- The higher the input voltage, the more the current through the first transistor will be reduced.
- At a high enough input voltage, the current through the first transistor can drop to zero, turning it off.
- Blocking the first transistor will cause the current through subsequent transistors in the circuit to stop.
- Thus, as the input voltage increases, the LEDs will turn off sequentially.
- Zero input voltage:
- At zero input voltage, the bases of PNP transistors are 0V and their emitters are 20V.
- Since the emitter-base voltage is 20V, all PNP transistors will be off.
- Turned on transistors will allow current to flow through their collector-emitter parts.
- Since the LEDs are connected in parallel to these parts, they will be shunted and will not light.
- Input voltage rise:
- As the input voltage increases, it will oppose the emitter-base voltage of the PNP transistors.
- The higher the input voltage, the more the current through the transistors will be reduced.
- At a high enough input voltage, the current through one or more transistors can drop to zero, turning them off.
- Blocking a transistor will cut the current through the LEDs connected to it, they will go out.
- Thus, as the input voltage increases, the LEDs will turn on sequentially.
In Conclusion
- Diversity of perspectives: The different perspectives and approaches of Cyril, Ivailo, and myself allowed us to look at the problem from different angles and discover new solutions that we might not have been able to see on our own.
- Knowledge sharing: We shared our knowledge and experience in the field of circuit design, which helped us to learn from each other and improve our collective skills.
- Efficiency: Through collaboration, we were able to make faster progress and optimize the time needed to finalize the circuit.
- Satisfaction: Teamwork is not only more effective but also more satisfying. Sharing success with others is motivating and encourages further development.
Our dialogue is an example of a circuit design methodology, which can be summarized in the following steps:
- Problem definition: Clearly formulate the task that the circuit must perform.
- Research: Investigate existing solutions, analyze their advantages and disadvantages.
- Idea generation: Propose different approaches and solutions for implementing the circuit.
- Evaluation of ideas: Analyze the proposed solutions, compare their characteristics, advantages, and disadvantages.
- Solution selection: Choose the most suitable solution that meets the specified criteria.
- Circuit development: Detailed design of the circuit, selection of components, preparation of drawings.
- Testing and optimization: Testing the circuit for functionality, troubleshooting, optimizing parameters.
- Documentation: Description of the circuit, its operation, characteristics, instructions for use.
Comments
Post a Comment
